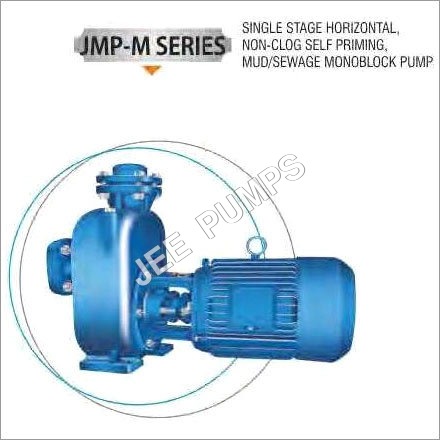

Industrial Non Clog Pump

9500.00 INR/Set

Get a Price/Quote

Product Details:

Max Suction Up to 8 meters
Working Temperature Up to 80C
Voltage 220V/380V/415V, 50/60Hz
Theory Centrifugal Pump
Features Non-clogging, High solid handling, Easy maintenance
Fuel Tank Capacity As per engine model
Frequency 50Hz / 60Hz
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Industrial Non Clog Pump Price And Quantity

Minimum Order Quantity 01 Set
Price 9500.00 INR/Set

Industrial Non Clog Pump Product Specifications

Voltage 220V/380V/415V, 50/60Hz
Working Temperature Up to 80C
Application Effluent, Slurry, Sludge, Waste water, Stormwater
Max Suction Up to 8 meters
Priming Self-Priming available
Standard ISI / ISO / Custom
Structure Single-Stage Horizontal / Vertical
Theory Centrifugal Pump
Seals Type Mechanical Seal / Gland Packing
Fuel Tank Capacity As per engine model
Frequency 50Hz / 60Hz
Features Non-clogging, High solid handling, Easy maintenance
Material Cast Iron / Stainless Steel
Power Up to 110 kW
Discharge Pressure As per model / capacity
Control System Automatic / Manual
Pump Type Non Clog Pump
Mounting Type Base Plate Mounted / Trolley Mounted
Flow Rate Up to 1250 m/hr
Suction Type Non-clog, Open Impeller
Head Size Up to 65 meters
Inlet/Outlet 50 mm to 300 mm
Fuel Type Electric / Diesel Engine Driven (optional)
Usage Industrial / Sewage / Waste Water
Pressure Max. 10 bar
Caliber As per model range
Capacity As per requirement
Noise Level Low
Speed 1450 / 2900 RPM

Industrial Non Clog Pump Trade Information

Supply Ability 50 Set Per Month
Delivery Time 1 Days

Product Description

Non Clog Pump

As the name suggests, our offered Non Clog Pump is widely used for applications where non clogging operations are to be looked upon for such as in the applications where solid material are to be transported. For instance, sewage treatment, dredging, mining and oil or gas refineries. The mentioned pump has a limited capacity. Therefore, the fully free vortex design of this pump enhances the non clogging operation that is suitable for transporting fluids with big particles of sludge. This Non Clog Pump consists of a recessed impeller or has an open rotor for its efficient working.

Benefits

Has a centrifugal pump open rotor to ensure less downtime.
Ensures that fluids do not pass through the impeller.
Perfect to be used for any fluid transportation up to 75 mm of particles.
Can also be used for sludge, paper pulp and slurry applications.

Specification

Capacity	Up to 250 m3/hr
Head	Up to 40 mtrs
Temperature	110 deg C
Suction Head	Up to 7 mtrs
Speed	Up to 3500 RPM
Solid Size	Up to 25 mm
Size	32 mm to 150 mm
Pressure	Up to 4 kg / cm2

Versatile Performance and Robust Build

Designed for robustness, these non-clog pumps accommodate diverse industrial needs. Their solid handling capability, up to 150mm, paired with a choice of open or semi-open impellers, ensures seamless operation even with highly contaminated media. The pumps support multiple mounting types, voltage ranges, and optional features like flameproof motors, making them adaptable to various site conditions.

Wide Range of Applications

These pumps are well-suited for industrial sectors dealing with effluent, slurry, sludge, waste water, and stormwater. Their ability to manage high flow rates and heads (up to 1250 m/hr and 65 meters, respectively) makes them reliable for both municipal and industrial usage, including sewage treatment, flood control, and transfer processes.

Easy Maintenance and Longevity

Constructed with heavy-duty materials and equipped with deep groove ball bearings, our non-clog pumps are designed for extended operational life. The non-clog impeller design reduces downtime caused by blockages, while optional self-priming and accessible sealing systems simplify regular upkeep, ensuring low overall maintenance costs.

FAQs of Industrial Non Clog Pump:

Q: How does the non-clog impeller design benefit pump performance in industrial settings?

A: The non-clog open or semi-open impeller is engineered to allow large solids, up to 150 mm in diameter (size-dependent), to pass through the pump without causing obstructions or blockages. This design ensures reliable operation in applications such as sewage, effluent, slurry, and other waste water environments where solid-laden fluids are common.

Q: What materials and protection features are available for these pumps?

A: Our pumps can be manufactured in cast iron or stainless steel for corrosion resistance, and are equipped with IP55 or IP54 protected motors depending on requirements. Shaft materials include stainless steel or carbon steel, and optional flameproof motors are available for hazardous applications, making these pumps suitable for a wide range of industrial environments.

Q: When should I choose a standard versus a flameproof motor?

A: A standard motor is suitable for most industrial applications that do not require special safety measures. If the pump will be installed in an environment with explosive or flammable atmospheres, a flameproof motor is recommended to meet safety and regulatory standards.

Q: Where can these non-clog pumps be installed and operated?

A: They are designed for flexible installation options and can be mounted either horizontally or vertically, depending on site constraints. Mounting options include base plate and trolley-mounted configurations, making them suitable for use in permanent facilities or as portable units at construction or flood sites.

Q: What is the process for selecting the right pump model and capacity?

A: To choose the appropriate model, you should consider factors such as required flow rate (up to 1250 m/hr), head (up to 65 meters), solid size to be handled, installation type, and voltage. Performance curves are available on request to help match the pump to your specific application. Our team can assist with technical selection based on usage details.

Q: How are these pumps maintained, and what makes maintenance straightforward?

A: These pumps are engineered for easy maintenance with accessible mechanical seals or gland packing and heavy-duty deep groove ball bearings. The non-clog design reduces the need for frequent cleaning due to less risk of blockages, ensuring minimal downtime and reduced maintenance costs over their operational life.

Q: What are the main advantages of using an industrial non-clog pump for sewage and waste water applications?

A: The primary advantages include high solid handling capability, adaptability to various mounting and operational scenarios, long service life, and low operational noise levels. These features help maintain continuous flow, reduce risk of clogs, and lower maintenance needs, making them highly efficient for demanding sewage and wastewater processes.
