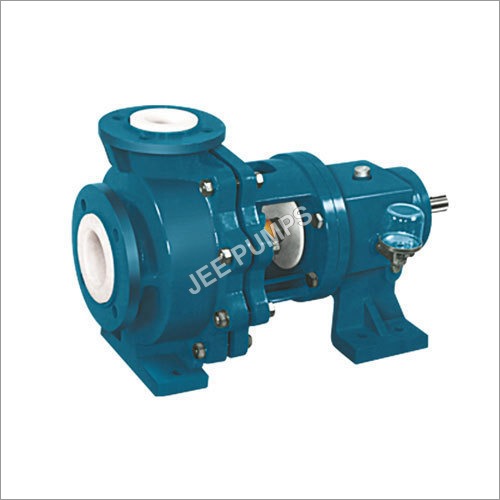

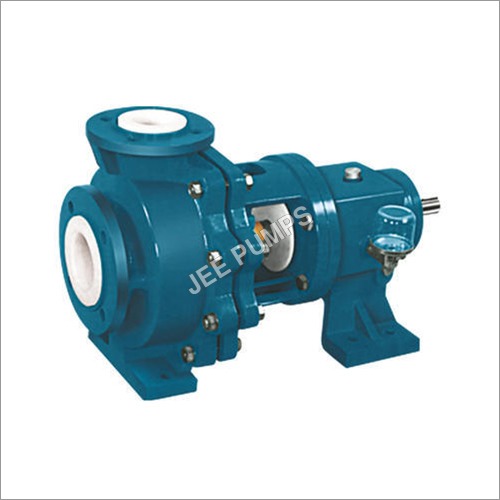

3500 Rpm Industrial PVDF Pumps

Name: 3500 Rpm Industrial PVDF Pumps
Brand: JEE PUMPS LIMITED
Price: 20000-100000 INR
Availability: InStock

Price 20000-100000 INR/ Piece

Get a Price/Quote

MOQ : 1 , , Piece

3500 Rpm Industrial PVDF Pumps Specification

Theory
Centrifugal Pump

Flow Rate
Up to 70 m³/hr

Material
PVDF (Polyvinylidene Fluoride)

Structure
Back Pull Out Type, Single Stage

Suction Type
Single Suction

Volute Type
Single Volute

Nozzle Location
End Suction, Top Discharge

Shaft Orientation
Horizontal

Power Source
Electric

Pressure
Up to 5 - 10 Bar

Temperature
-10°C to +120°C

Inlet, Outlet Diameter
25 mm x 25 mm to 80 mm x 80 mm

Speed
3500 RPM

Application
Chemical Process, Acid Handling, Effluent Treatment, Pharmaceutical, Water Treatment Plants

Maximum Solid Size
Up to 8 mm

Sealing Type
Mechanical Seal

Motor Power Range
1 HP to 15 HP

Impeller Type
Closed Impeller

Self Priming
No

Color
White / Grey

Corrosion Resistance
Excellent for Acids, Alkalis, Solvents

Mounting
Foot Mounted

3500 Rpm Industrial PVDF Pumps Trade Information

Minimum Order Quantity
1 , , Piece

Supply Ability
50 Pieces Per Month

Delivery Time
1 Week

About 3500 Rpm Industrial PVDF Pumps

Product details

Discharge Size	25 mm to 100 mm
Material of Construction	PVDF
Pressure	Up to 9 kg / cm2
Speed	Up to 3500 rpm
Temperature	Max. 120 Degree C
Capacity	Up to 250 m3/hr
Head	Up to 90 mtr

Outstanding Corrosion Resistance

Manufactured using PVDF (Polyvinylidene Fluoride), these pumps are exceptionally resistant to aggressive chemicals including acids, alkalis, and solvents. Their robust construction ensures long-term performance and safety in corrosive environments common to chemical and pharmaceutical industries.

Reliable Performance and Efficiency

Operating at 3500 RPM with a closed impeller design, these pumps deliver consistent, efficient flow rates up to 70 m/hr. The single-stage, centrifugal pumping system ensures smooth operation, while the mechanical seal minimizes leakage, reducing maintenance requirements.

Versatile Industrial Applications

Suitable for chemical processing, acid transfer, effluent treatment, and water purification plants, these PVDF pumps fulfill varied industrial requirements. Their compatibility with different mounting and nozzle options makes them adaptable for new installations and retrofit projects.

FAQs of 3500 Rpm Industrial PVDF Pumps:

Q: How do PVDF pumps enhance chemical resistance in industrial environments?

A: PVDF (Polyvinylidene Fluoride) pumps are highly resistant to corrosive chemicals such as acids, alkalis, and various solvents, making them ideal for demanding environments like chemical processing and pharmaceutical industries.

Q: What is the recommended process for installing these foot-mounted pumps?

A: These pumps are designed for horizontal shaft alignment with foot mounting. Ensure the base is properly leveled, and connect electric power according to the required motor specifications, ranging from 1 HP to 15 HP. Follow manufacturer guidelines for safe installation and alignment.

Q: When should a mechanical seal be chosen over other sealing types in pump systems?

A: Mechanical seals are recommended when handling corrosive or hazardous fluids, as they provide better containment and minimize leakage compared to other seal types, enhancing safety and extending pump life.

Q: Where can these PVDF industrial pumps be used most effectively?

A: They are best suited for chemical processing plants, acid handling facilities, effluent treatment stations, pharmaceutical operations, and water treatment plants due to their exceptional corrosion resistance and robust design.

Q: What are the usage limitations in terms of particle size and self-priming capabilities?

A: These pumps are not self-priming and can handle solid particles up to 8 mm in diameter. They are suited for applications where liquid priming is possible and minimal solids are present within the stated maximum solid size.

Q: What benefits does the back pull-out structure offer during pump maintenance?

A: The back pull-out structure allows easy removal of the pumps rotating assembly without disturbing pipe connections, reducing downtime and simplifying routine maintenance or seal replacement processes.
