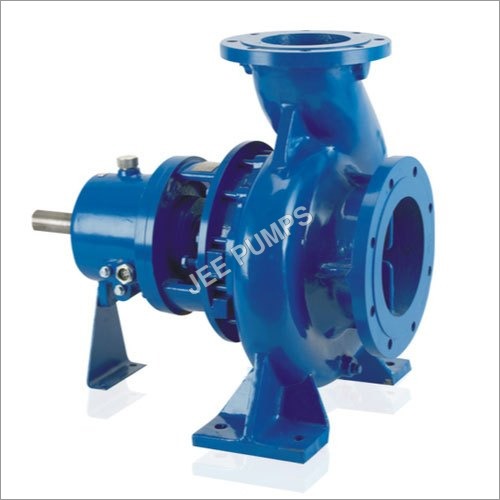

Fluid Transfer Centrifugal Pumps

Name: Fluid Transfer Centrifugal Pumps
Brand: JEE PUMPS LIMITED
Price: 6500 INR
Availability: InStock

Price 6500 INR/ Piece

Get a Price/Quote

Fluid Transfer Centrifugal Pumps Specification

Flow Rate
Up to 80 m³/h

Theory
Centrifugal Pump

Material
Cast Iron / Stainless Steel options

Structure
Back Pull-Out Type

Suction Type
Single Suction

Volute Type
Single Volute

Nozzle Location
End Suction, Top Discharge

Shaft Orientation
Horizontal

Power Source
Electric Motor

Pressure
Up to 8 bar

Temperature
Up to 120°C

Inlet, Outlet Diameter
50 mm x 40 mm (custom sizes available)

Speed
2900 RPM

Application
Fluid transfer for industrial, chemical, water supply, and process applications

Noise Level
Less than 75 dB(A) at 1 metre

Compliance
ISO 5199, ISO 2858

Motor Protection
IP55

Coupling
Flexible Coupling

Direction of Rotation
Clockwise viewed from drive end

Surface Finish
Powder Coated (for Cast Iron), Polished (for SS)

Voltage Range
220V/380V/415V, 50/60 Hz

Bearing Type
Grease-lubricated Ball Bearings

Impeller Type
Enclosed / Semi-open

Seal Type
Mechanical Seal / Gland Packing

Service Life
More than 10,000 hours under standard conditions

Mounting Type
Foot Mounted

Max. Suction Lift
Up to 8 meters

About Fluid Transfer Centrifugal Pumps

Utilise this blue-ribbon offer to secure our pivotal Fluid Transfer Centrifugal Pumps-currently in scarce availability due to unprecedented demand. Featuring enclosed or semi-open impellers, robust mechanical seals or gland packing, and grease-lubricated bearings, they guarantee more than 10,000 hours of reliable service life. Powerfully engineered for industrial, chemical, and water applications, these pumps include flexible coupling, IP55-protected motors, and operate up to 8 bar pressure and 120C. Compliant with ISO 5199/2858, and available in both powder-coated cast iron and polished stainless steel. Limited stock-act now to ensure supply.

Versatile Construction Meets Demanding Applications

Fluid Transfer Centrifugal Pumps are crafted from high-grade cast iron or stainless steel, delivering exceptional durability and resistance to corrosion. With back pull-out structure and grease-lubricated ball bearings, maintenance is simplified. These machines are suitable for industrial, chemical, or water process applications, performing efficiently under temperatures up to 120C and pressures up to 8 bar. Whether for continuous plant operations or critical process installations, these pumps provide consistent flow rates up to 80 m3/h.

Global Shipping, Certifications & Timely Delivery

Our Fluid Transfer Centrifugal Pumps are shipped globally, serving leading export markets across North America, Europe, Africa, and Asia. Shipped goods adhere strictly to ISO 5199 and ISO 2858 standards, delivering peace of mind to international clients. Typical delivery time ranges from 4 to 6 weeks, depending on your order size and location. For current asking prices and export details, please contact our sales team. We ensure prompt dispatch and real-time shipment tracking.

FAQ's of Fluid Transfer Centrifugal Pumps:

Q: How do Fluid Transfer Centrifugal Pumps benefit industrial operations?

A: These pumps provide reliable, efficient fluid transfer for continuous or demanding industrial applications, offering low maintenance and long service life-over 10,000 hours under standard conditions.

Q: What is the process for installing these centrifugal pumps?

A: Installation is straightforward due to the back pull-out design. Foot mounting and flexible coupling simplify alignment, while horizontal shaft orientation supports ease of integration into existing systems.

Q: Where can these pumps be used?

A: These pumps are suitable for industrial plants, chemical processes, water supply systems, and a variety of process applications requiring single-suction centrifugal pumps up to 8 bar pressure.

Q: What certifications do these pumps comply with?

A: All models are built to conform with ISO 5199 and ISO 2858 standards, ensuring top-tier quality, safety, and compatibility for both domestic and international markets.

Q: When will I receive my shipped goods after placing an order?

A: Standard delivery time is typically 4 to 6 weeks after order confirmation, with real-time shipment updates available. Delivery timelines may vary depending on export destination and order size.
