Industrial Horizontal Centrifugal Chemical Process Pump

Send Inquiry

Request To Call Back

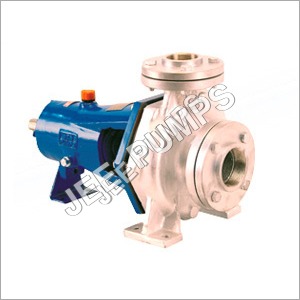

Industrial Horizontal Centrifugal Chemical Process Pump

Name: Industrial Horizontal Centrifugal Chemical Process Pump
Brand: JEE PUMPS LIMITED
Price: 19500.00 INR
Availability: InStock

Price 19500.00 INR/ Set

Get a Price/Quote

MOQ : 01 Set

Industrial Horizontal Centrifugal Chemical Process Pump Specification

Speed
2900 RPM

Control System
Manual / DOL / Star-Delta Starter

Inlet/Outlet
80 mm / 65 mm

Head Size
Up to 100 m

Discharge Pressure
Up to 10 bar

Caliber
80 mm

Frequency
50 Hz

Features
Corrosion resistant, easy maintenance, robust design

Max Suction
Up to 5 m

Flow Rate
20120 m/h

Noise Level
< 80 dB

Theory
Centrifugal Pump

Voltage
415 V

Working Temperature
Up to 150C

Mounting Type
Baseplate Mounted

Material
Cast Iron / Stainless Steel

Structure
Single-Stage

Power
5.5 kW18.5 kW

Standard
ISO 5199 / DIN 24256

Fuel Type
Electric

Pressure
Max 10 bar

Usage
Chemical Process Liquid Transfer

Application
Chemical, Petrochemical, Pharmaceuticals, Water Treatment

Suction Type
Horizontal

Seals Type
Mechanical Seal / Gland Packing

Priming
Self / Manual

Pump Type
Horizontal Centrifugal

Capacity
20120 m/h

Seal Arrangement
Back Pull-Out Design

Cooling Method
Air Cooled

Max Solid Size
Up to 8 mm

Coupling Type
Flexible Coupling

Bearing Type
Heavy Duty Ball Bearing

Impeller Type
Closed / Semi-open

Painting
Epoxy Coated

Serviceability
Back Pull-Out for Easy Maintenance

Protection Class
IP55

Weight
Approx 95 kg

Direction of Rotation
Clockwise

Shaft Material
EN8 / SS316

Industrial Horizontal Centrifugal Chemical Process Pump Trade Information

Minimum Order Quantity
01 Set

Supply Ability
50 Sets Per Month

Delivery Time
1 Week

Main Domestic Market
All India

About Industrial Horizontal Centrifugal Chemical Process Pump

Our premium grade Horizontal Centrifugal Chemical Process Pumps are the most reliable choice available in the market. Their seamless finish make them the most acclaimed choice of many experts of the industry. The impact tolerant bodies and resistance to damages from chemical that our pumps showcase also contributes heavily to their popularity in the market. Our top grade Horizontal Centrifugal Chemical Process Pumps can withstand highly corrosive chemicals. The reliable solid molded casing as well as impeller of our pumps ensure a durable performance of our centrifugal pumps. The quality parts of our process pumps helps them in functioning without any glitch.

Features

Our premium grade pumps requires minimal maintenance in the long period of time
Our pumps are available in varied dimensional, design and technical specifications
Our pumps are engineered in perfect adherence to global standards
Our quality pumps are tested prior to sale

Specification

Capacity	Up To 80 m3/hr
Temperature	110 Deg C
TDH Head	Up To 62 mtr
Speed (at 60 Hz)	1750 / 3500 rpm
Speed (at 50 Hz)	1450 / 2880 rpm
Pump Sizes	DN 25 mm TO 50 mm

Superior Engineering for Chemical Applications

The pump is crafted with premium materials such as cast iron or stainless steel, ensuring corrosion resistance and extended life in harsh chemical processing environments. Heavy duty ball bearings and flexible coupling provide operational stability, while the closed or semi-open impeller design optimizes flow and handles solids up to 8 mm effectively. Each component is tailored for system compatibility and operational reliability.

Effortless Maintenance and Accessibility

Designed with a back pull-out arrangement, service teams can perform maintenance or replace key components without dismantling the entire system. This innovative feature reduces downtime and simplifies routine inspections, making it ideal for environments where continuous operation is crucial. The pumps baseplate mounting and robust construction further facilitate rapid access and safer handling.

Versatile Operational Benefits

This centrifugal pump supports a wide range of applications, from chemical to water treatment. With a discharge pressure of up to 10 bar, variable flow rates, and compatibility with manual or automated control systems, users benefit from adaptability in diverse industry scenarios. Its air-cooled system and noise levels under 80 dB contribute to safer, more comfortable working conditions.

FAQs of Industrial Horizontal Centrifugal Chemical Process Pump:

Q: How does the back pull-out design simplify maintenance for this pump?

A: The back pull-out design allows operators to remove the pumps rotating assembly without disturbing the main pipe connections. This significantly reduces maintenance time and effort, ensuring quicker service and minimal operational disruption during repairs or routine checks.

Q: What types of liquids can this centrifugal pump handle?

A: This pump is suitable for transferring chemical process liquids, including corrosive fluids used in chemical, petrochemical, pharmaceutical, and water treatment industries. Its construction and seals are optimized for aggressive liquids and suspended solids up to 8 mm.

Q: When should I consider using mechanical seals versus gland packing with this pump?

A: Mechanical seals are recommended for applications requiring superior leakage control and for handling hazardous, volatile, or high-temperature fluids. Gland packing may be used for less critical services, where small amounts of leakage are acceptable and the fluid is less hazardous.

Q: Where is this pump commonly installed?

A: The pump is typically installed in industrial sites such as chemical plants, pharmaceutical factories, water treatment facilities, and petrochemical refineries. Its robust design and baseplate mounting make it well suited for harsh and high-demand operational environments.

Q: What benefits does the epoxy coating offer?

A: Epoxy coating enhances the pumps resistance to corrosion and chemical attack, extending its lifespan and maintaining performance in aggressive environments typical of chemical processing industries.

Q: How does the pump ensure reliable performance at high temperatures?

A: The pump is engineered to handle working temperatures up to 150C using air cooling for the bearings and robust materials such as EN8 or SS316 for the shaft. This construction safeguards integral components, providing consistent performance in hot fluid applications.

Q: What is the maximum flow rate and head this pump can achieve?

A: Depending on the selected model, the pump can achieve flow rates from 20 to 120 m/h and deliver heads up to 100 meters, meeting a broad range of process requirements in industrial applications.
