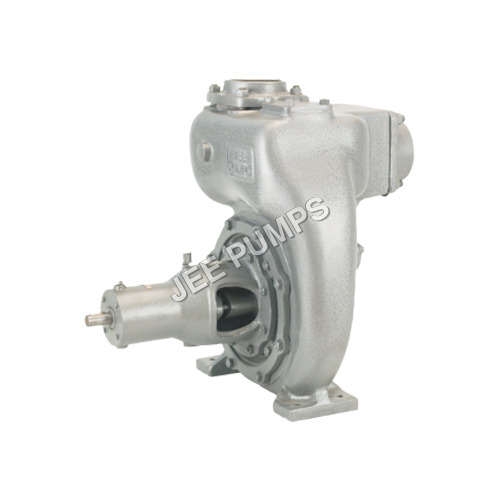

Industrial Mud Transfer Pump

Get a Price/Quote

MOQ : 1 Set

Industrial Mud Transfer Pump Specification

Speed
1450/2900 RPM

Frequency
50Hz / 60Hz

Voltage
220V/380V, 50Hz/60Hz

Caliber
75 mm

Max Suction
7 m

Mounting Type
Base Plate Mounted

Control System
Manual/Electric Panel

Inlet/Outlet
3 inch / 3 inch (customizable)

Theory
Centrifugal Pump

Noise Level
75 dB

Material
Cast Iron

Standard
ISO 9001

Fuel Type
Electric

Usage
Industrial Mud Transfer

Application
Mud/Sewage/Slurry Transfer

Suction Type
End Suction

Seals Type
Mechanical Seal

Pump Type
Industrial Mud Pump

Capacity
Up to 60 m/h

Driving Type
Electric Motor

Color
Blue/Custom

Cooling Method
Air Cooled

Protection Class
IP55

Max Particle Size
Up to 38 mm

Installation
Horizontal

Industrial Mud Transfer Pump Trade Information

Minimum Order Quantity
1 Set

Supply Ability
50 Sets Per Month

Delivery Time
1 Days

About Industrial Mud Transfer Pump

We have marked a distinct position in the domain by offering fine quality Mud Transfer Pump. It is precisely manufactured using premium grade materials and latest technology under the stern supervision of technical team. Designed for filtering press feeding, ETP, STP and waste water, it has various applications in food processing, pharmaceutical and chemical industries. In addition, this Mud Transfer Pump can be availed from us at an economical price range.

Features :-

Easy installation
Sturdy construction
Corrosion resistance body

Applications :-

Dewatering, mud, marine, effluent, hotel, loading & transfer of oils, spirits, swimming Pool, gas oil engine cooling
Filter press feeding, ETP, STP, waste water treatment plant
Vessels, industrial-pumping petroleum products, chemical
Civil construction-dewatering foundations, treatment plant
Mobile machinery-cooling water for marine engines and shovels
Public utilities-sewage pumping Pier, excavations, pits, pot-holes etc., gram panchayats, municipalities, public health Departments, large housing colonies, industries like chemical, pharmaceuticals, food, Cement, paper, sugar, salt, steel plant, barges.

Mechanical Seal Option :-

STV (Carbon Vs Ceramic / Tc with NBR Elastomer)
CCV (Carbon Vs Ceramic / Tc with Viton Elastomer)
CCT (Carbon Vs Ceramic / Tc with PTFE Elastomer)

Superior Mud and Slurry Handling

Designed for maximum efficiency, this pump easily handles solids up to 38 mm, making it especially suited for transferring mud, sewage, or slurry in demanding industrial environments. The robust cast iron build enhances longevity, ensuring continuous operation even in tough conditions.

Versatile and Customizable Design

Customizable in color and inlet/outlet specifications, this pump adapts to existing systems with ease. Its horizontal installation and base plate mounting facilitate straightforward integration and maintenance. With options for both manual and electric panel controls, it provides users with flexible operational modes.

Reliable Performance and Safety

The IP55 protection rating and air-cooled mechanism ensure consistent performance and protection from dust and water jets. Powered by an electric motor operating at 220V/380V and 50Hz/60Hz, it delivers stable output with low noise levels, making it a practical solution for a wide range of industrial settings.

FAQs of Industrial Mud Transfer Pump:

Q: How does the industrial mud transfer pump handle large particles?

A: The pump is designed to accommodate particles up to 38 mm in diameter due to its robust internal architecture and end suction mechanism. This allows efficient handling of thick mud, slurry, or sewage without clogging.

Q: What are the installation requirements for this pump?

A: The mud transfer pump must be installed horizontally on a base plate for optimal stability and performance. The inlet and outlet connections are 3 inch by default but can be customized to suit specific site or application needs.

Q: When should I use this pump over other types of pumps?

A: This pump is ideal when transferring abrasive, viscous materials with suspended solidssuch as mud, slurry, or sewagewhere handling particle-laden fluids efficiently is crucial.

Q: Where can this industrial mud pump be used most effectively?

A: It is best suited for use in industrial settings like wastewater treatment plants, construction sites, mining operations, and other environments where reliable mud or slurry transfer is necessary.

Q: What is the process for starting and operating this pump?

A: Available in both manual and electric panel control versions, starting the pump involves ensuring proper connection to a 220V/380V, 50Hz/60Hz power supply, priming the pump if required, and monitoring operational parameters as specified in the user manual.

Q: What maintenance does the pump require to ensure long-term reliability?

A: Routine maintenance includes checking the mechanical seal, ensuring the suction line is clear of obstructions, monitoring the air cooling system, and regular inspections of IP55 housing for signs of dust or water ingress.

Q: What are the main benefits of choosing this mud transfer pump?

A: This pump offers high durability, efficient handling of solid-laden fluids, customizable options, low noise emission (75 dB), and compliance with ISO 9001 standards, making it both safe and highly adaptable for industrial needs.
