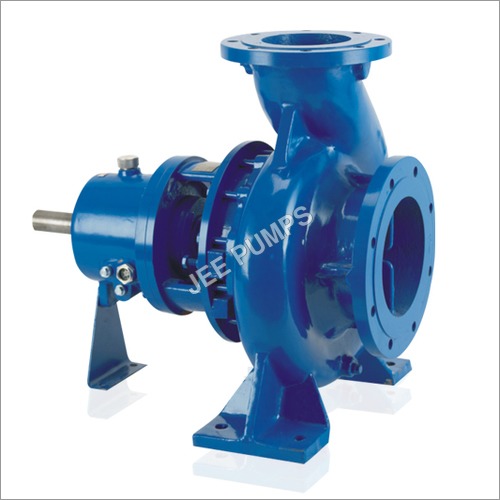

Industrial Thermal Hot Oil Centrifugal Pump

Price 65000.00 INR/ Set

Get a Price/Quote

MOQ : 01 Set

Industrial Thermal Hot Oil Centrifugal Pump Specification

Theory
Centrifugal Pump

Flow Rate
Up to 240 m/h

Material
Cast Steel / SS304 / SS316

Structure
Single Stage End Suction

Suction Type
Single Suction

Volute Type
Single Volute

Nozzle Location
Top Centerline

Shaft Orientation
Horizontal

Power Source
Electric

Pressure
Up to 16 bar

Temperature
Up to 350C

Inlet, Outlet Diameter
40mm x 32mm to 150mm x 125mm (customizable)

Speed
1450/2900 RPM

Application
Thermal Oil Transfer, Industrial Heating Systems

Mounting Type
Base Mounted

Noise Level
< 85 dB(A) at 1 meter

Maximum Viscosity
Up to 200 cSt

Bearing Type
Heavy Duty, Oil Lubricated

Service Life
Long Service Life, Low Maintenance

Installation
Horizontal Floor Mount

Impeller Type
Closed / Semi-open Impeller

Protection Class
IP55 / IP65

Painting / Coating
Epoxy Painted for Corrosion Resistance

Seal Type
Mechanical Seal / Gland Packing

Drive Type
Direct Coupling

Cooling Method
Air / Fan Cooled

Industrial Thermal Hot Oil Centrifugal Pump Trade Information

Minimum Order Quantity
01 Set

Supply Ability
50 Sets Per Month

Delivery Time
1 Week

About Industrial Thermal Hot Oil Centrifugal Pump

Technical Specifications:

Capacity	Upto 180 m3/hr
Usage/Application	Industrial
Temperature	350 deg C
Speed	Up to 3500 RPM
Pressure	Up to 8 kg/cm2
Material of Construction	Grey Cast Iron,Cast Steel,Alloy Cast Steel
Discharge Size	32 mm to 80 mm
Cooling Method	With air

Versatile and Robust Construction

Built with high-quality materials including Cast Steel, SS304, and SS316, the pump withstands harsh environments and handles a wide range of industrial liquids. The epoxy coating ensures superior corrosion resistance, extending the operational life even in aggressive conditions. Its sturdy, base-mounted, horizontal floor installation facilitates easy integration into existing systems.

Efficient Thermal Oil Handling

Engineered for transferring hot thermal oil in industrial process heating, this pump manages high flow rates up to 240 m/h and pressures up to 16 bar. Its air- or fan-cooling method, along with advanced sealing systems, deliver reliable performance at temperatures reaching 350C, making it indispensable in heating systems, petrochemical, or food processing industries.

Low Maintenance and Longevity

Featuring heavy-duty, oil-lubricated bearings and a direct coupled drive, the pump offers long service intervals and reduced maintenance requirements. Its IP55/IP65 protection class minimizes external contamination and wear, while the optimized design keeps operating noise below 85 dB(A) at one meter, ensuring a pleasant working environment.

FAQs of Industrial Thermal Hot Oil Centrifugal Pump:

Q: How does the mechanical seal or gland packing improve pump reliability?

A: Mechanical seals and gland packings are designed to minimize fluid leakage at the pump shaft, even under high-temperature and pressure conditions. They offer improved reliability and extend service intervals by preventing oil or thermal fluid loss, thus protecting internal components and reducing maintenance frequency.

Q: What applications are ideal for this centrifugal thermal oil pump?

A: This pump is optimized for thermal oil transfer in industrial heating systems, general process heat transfer, chemical and food processing plants, and other operations requiring high-temperature fluid movement. Its robust construction allows safe and efficient handling of hot oils up to 350C.

Q: When should I use the air/fan cooled feature?

A: Air or fan cooling is essential when pumping fluids at high temperatures, as it prevents the pump from overheating. Use this feature especially when operating continuously near the upper temperature threshold or in environments with limited ambient cooling.

Q: Where should I install this pump for optimal performance?

A: For best performance, the pump should be installed as a horizontal floor mount on a solid base. Position the inlet and outlet to suit your piping arrangement, ensuring easy access for maintenance and alignment with your systems thermal oil lines.

Q: What is the benefit of the heavy-duty, oil-lubricated bearing design?

A: Heavy-duty, oil-lubricated bearings offer robust support for the rotating assembly, increase load capacity, and significantly prolong the pumps service life. This design contributes to lower downtime, high reliability, and minimized maintenance.

Q: How does the pumps single volute and single suction configuration affect usage?

A: The single volute and single suction design results in uniform pressure distribution around the impeller, improving efficiency. It simplifies maintenance and is ideal for applications with moderate flow and pressure needs up to 16 bar and 240 m/h.

Q: What are the customizable options for the inlet and outlet diameters?

A: The pump accommodates various system requirements with customizable inlet and outlet diameters ranging from 40mm x 32mm to 150mm x 125mm. This flexibility allows precise matching to your existing pipeline infrastructure.
