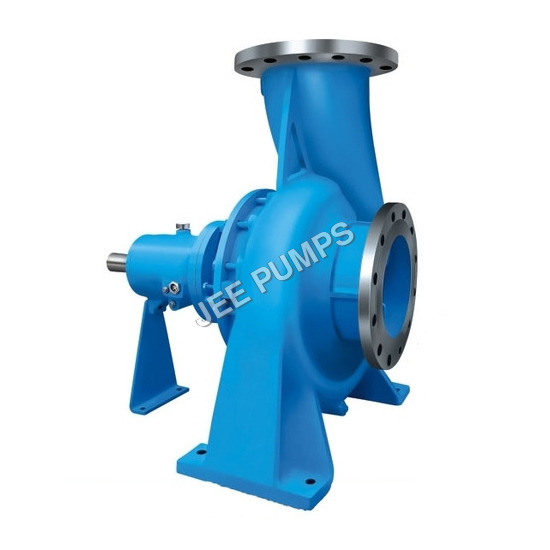

Industrial Paper Stock Pump

Get a Price/Quote

MOQ : 01 Set

Industrial Paper Stock Pump Specification

Frequency
50 Hz / 60 Hz

Working Temperature
Up to 120C

Mounting Type
Baseplate Mounted

Head Size
15 - 120 m

Discharge Pressure
High Pressure

Noise Level
Low

Features
Clog Free Design, Efficient, Low Maintenance

Inlet/Outlet
100 mm x 80 mm

Theory
Centrifugal Pump

Control System
Manual / Automatic

Voltage
415 V

Flow Rate
100 - 500 m/h

Max Suction
Up to 7 m

Caliber
Customizable

Speed
1450 / 2900 RPM

Material
Cast Iron / Stainless Steel

Structure
Single Stage / Horizontal

Power
10 - 100 HP

Standard
ISO 2858 / DIN 24256

Fuel Type
Electric

Pressure
Up to 16 Bar

Usage
Industrial Paper Mill, Pulp & Paper

Application
Paper Pulp Transfer, Water Supply

Suction Type
End Suction

Seals Type
Mechanical Seal / Gland Packing

Priming
Self Priming / Non-Self Priming

Pump Type
Paper Stock Pump

Capacity
Upto 500 m/h

Shaft Material
High Strength Alloy Steel

Painting/Coating
Epoxy Paint / Anti-corrosive Coating

Impeller Type
Semi-open, Non-clogging

Bearings
Heavy Duty, Grease/Oil Lubricated

Connection Standard
DIN/ANSI Flanges

Consistency Range
Up to 6% Pulpy Consistency

Service Life
Long life, Designed for Continuous Operation

Direction of Rotation
Clockwise from Drive End

Industrial Paper Stock Pump Trade Information

Minimum Order Quantity
01 Set

Supply Ability
50 Sets Per Month

Delivery Time
1 Week

About Industrial Paper Stock Pump

Paper Stock pump

Applications :-

Stock pump, Refiners pump, Fan pump, Centri cleaner pump, Back water pump, Separator pump etc,,,,,
ETP STP & Waste water treatment plant fertilizers, Cement & Steel industries
For pumping chemicals with solids in suspension polluted liquids widely used for public and civil engineering.

Operating Data :-

Capacity: Up to 640m³/hr
Head: Up to 54 Mtr.
Size: Up to 8
Temperature: Up to 250 C
Speed; Up to1500 rpm
M.O.C.: C.I., C.S., SS-304, SS-304L, SS-316, SS-316L, Bronze, Alloy-20,
CD4MCU, Hast alloy B & C, etc

Engineered for Paper Mill Efficiency

Built specifically for industrial paper and pulp handling, this paper stock pump ensures efficient transfer of fibrous materials with minimal downtime. The semi-open non-clogging impeller accommodates pulpy consistencies up to 6%, making it ideal for challenging fluids in paper mills. With a high-efficiency design, robust bearings for extended service life, and customizable configurations, the pump delivers reliable performance even in demanding environments.

Robust Construction and Long Service Life

Manufactured with heavy-duty materials such as cast iron and high-strength alloy steel, the pump is engineered for durability. It runs continuously at high temperatures (up to 120C), supports high pressures (up to 16 bar), and features anti-corrosive epoxy coatings to withstand harsh operating conditions. The pump meets industry standards including ISO 2858 and DIN 24256, ensuring quality and long-term usability for a range of applications.

Flexible Installation and Low Maintenance

The baseplate-mounted design, end suction configuration, and standard DIN/ANSI flanges simplify installation across diverse settings. It is available with options for self-priming or non-self-priming operation, multiple sealing solutions (mechanical seal or gland packing), and supports both manual and automatic controls. These features guarantee low maintenance demands and seamless integration into paper production or water management systems.

FAQs of Industrial Paper Stock Pump:

Q: How does the semi-open, non-clogging impeller improve pump performance in paper mills?

A: The semi-open, non-clogging impeller efficiently handles fibrous, pulpy mixtures up to 6% consistency by allowing solids to pass through without blockage. This design reduces downtime for cleaning and maintains steady flow, making it highly effective for continuous operation in industrial paper mills.

Q: What are the installation requirements for this industrial paper stock pump?

A: The pump is baseplate mounted and features standardized DIN/ANSI flange connections, making it straightforward to install on most industrial setups. Installation can accommodate both manual and automatic control systems, with options for self-priming or non-self-priming based on site requirements.

Q: When should I perform maintenance on this pump, and what is involved in the process?

A: Routine maintenance intervals depend on operational intensity, but thanks to heavy-duty bearings and robust seals, required servicing is infrequent. Typical maintenance includes checking lubrication (grease or oil), inspecting seals, and ensuring the anti-corrosive coating remains intact for longevity.

Q: Where can this pump be effectively used apart from paper pulp transfer?

A: While specifically designed for pulp and paper industries, this pump is also suitable for water supply, slurry transfer, and other industrial liquid handling processes requiring high flow rates and resistance to clogging, especially where fibrous or viscous matter is involved.

Q: What benefits does the anti-corrosive epoxy coating offer in industrial environments?

A: The pumps epoxy paint and anti-corrosive coating protect it against harsh chemicals, moisture, and wear, greatly extending the equipments lifespan and minimizing repair costs even in aggressive industrial conditions, ensuring longer service intervals.

Q: How does the customizable caliber and material selection enhance the pumps flexibility?

A: Offering customizable caliber and material options such as cast iron or stainless steel allows the pump to be tailored to specific site requirements and fluid characteristics, improving compatibility with varying operational demands and chemical compositions.

Q: What control and operational options are available for this pump?

A: The pump supports both manual and automatic controls and is compatible with standard voltages (415V) and frequencies (50/60 Hz). It delivers reliable high-pressure performance for capacities up to 500 m/h, and can be outfitted for either self-priming or non-self-priming operation depending on the application.
