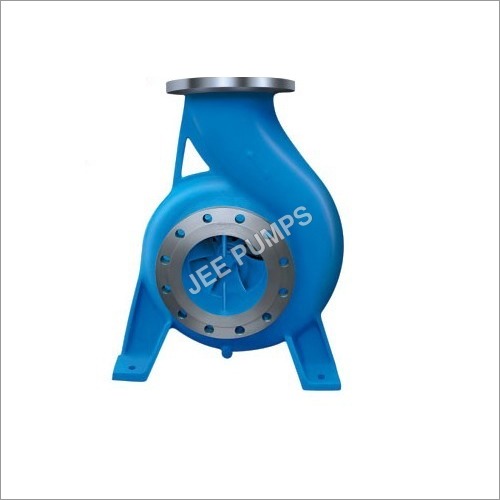

Industrial Paper Mill Pump

Name: Industrial Paper Mill Pump
Brand: JEE PUMPS LIMITED
Price: 62000.00 INR
Availability: InStock

Price 62000.00 INR/ Set

Get a Price/Quote

MOQ : 1 Set

Industrial Paper Mill Pump Specification

Caliber
50 mm 400 mm

Mounting Type
Baseplate Mounted

Inlet/Outlet
DN50DN400

Voltage
380V / 415V / 440V

Discharge Pressure
up to 16 bar

Max Suction
8 m

Flow Rate
up to 2500 m/h

Frequency
50 Hz / 60 Hz

Working Temperature
Up to 120C

Noise Level
85 dB

Head Size
up to 140 m

Theory
Centrifugal Pump

Speed
1450 rpm / 2900 rpm

Control System
Manual / Automatic options available

Material
Cast Iron / Stainless Steel

Structure
Horizontal, End Suction

Power
up to 350 kW

Standard
ISO 5199 / DIN 24256

Fuel Type
Electric

Pressure
up to 16 bar

Usage
Other

Application
Other

Suction Type
Single Suction

Seals Type
Mechanical Seal / Gland Packing

Pump Type
Centrifugal Process Pump

Capacity
up to 2500 m/h

Industrial Paper Mill Pump Trade Information

Minimum Order Quantity
1 Set

Supply Ability
50 Sets Per Month

Delivery Time
1 Week

About Industrial Paper Mill Pump

We have been widely appreciated by the clients for our ability to manufacture, supply and export genuine quality Paper Mill Pump. These pumps are manufactured using genuine quality raw material and components that are procured from some of the most trusted vendors of the market. The entire range Paper Pump is designed and manufactured with the aid of advanced facilities installed at our infrastructure. Paper Mill Pump is also checked on certain quality parameters like durability, maintenance cost, functioning and others.

Technical Specifications :

Pump material: Graded Grey Cast Iron, Alloy Steel
Pump Steering: counter clockwise rotation
Standard or Nonstandard: Standard Type
Lubrication Require: Grease and Oil
Pump Structure: Single stage Pump
Product Type: Paper Mill Pump
Pump Speed: Up to1500 rpm approx.
Pump Sizes - DN: 25 mm to 300 mm
Pump Pressure: Up to 5.5 kg/cm2
Capacity: Up to 640m3/hr approx.
Pump Pressure: High & Low Pressure
Pump "">Pump Heads: Up to 55 Mtr.
Pump Consistency: Up to 7 %
TDH H - Up To: 48 Mtr.
Pump Temperature: 3250 C
Impellers: Open & Semi Open Type
Power Type: Electric
Pump Usage: Water

Applications Area :

chest pump, refineries pump, fan pump, centri cleaner pump, back water pump, separator pump, couch pit pump, turbo feed pump, stock pump

Versatile Industrial Applications

This centrifugal paper mill pump is tailored for a range of uses including pulp transfer, water circulation, and handling of various industrial liquids. Its durable structure and broad operating parameters make it suitable for heavy-duty processes in paper mills and industrial plants.

Efficient and Reliable Performance

Designed for maximum efficiency, this pump maintains consistent flow rates up to 2500 m/h and operates at speeds of 1450 or 2900 rpm. Its advanced sealing options, sturdy construction, and pressure tolerance up to 16 bar ensure reliable performance even under challenging conditions.

Customizable for Your Needs

Available in cast iron or stainless steel, with choice of mechanical seal or gland packing, this pump supports voltages suitable for international operations. Control systems can be manual or automatic, and mounting is simple with baseplate solutions, making customization straightforward for your facility.

FAQs of Industrial Paper Mill Pump:

Q: How is the Industrial Paper Mill Pump installed and commissioned?

A: The pump is baseplate-mounted and designed for horizontal installation. It should be installed on a secure, level foundation by trained personnel. Upon connection to the appropriate voltage supply (380V/415V/440V) and proper alignment, commissioning involves priming, checking seal integrity, and gradual start-up under supervision.

Q: What are the main benefits of using this centrifugal process pump in paper mills?

A: This pump offers superior performance in pulp transfer and industrial water circulation, supporting high flow rates and efficient material movement. Its durable materials, noise level of 85 dB, and compliance with international standards ensure longevity, reliability, and safe operation in demanding mill environments.

Q: When should mechanical seals be preferred over gland packing for sealing?

A: Mechanical seals are recommended for applications with higher pressures, temperatures, or where leak prevention is criticalsuch as transferring chemicals or hot fluids. Gland packing may be used in less demanding situations or where maintenance accessibility is prioritized.

Q: Where can this pump be utilized aside from paper mills?

A: Beyond paper mill processing, this pump is well-suited for water circulation, chemical processing, wastewater handling, and other industrial processes that require reliable liquid transfer at variable flow rates and pressures.

Q: What is the maximum suction capability and how does it affect usage?

A: The pump offers a maximum suction of 8 meters, making it capable of drawing fluids from significant depths or distances, provided inlet conditions are appropriate. This enhances flexibility in installation and process design.

Q: How does the control system enhance pump operation?

A: The pump is available with both manual and automatic control options. Automatic controls help monitor and regulate performance, protect against abnormal conditions, and optimize efficiency, minimizing operator intervention and maximizing process stability.
